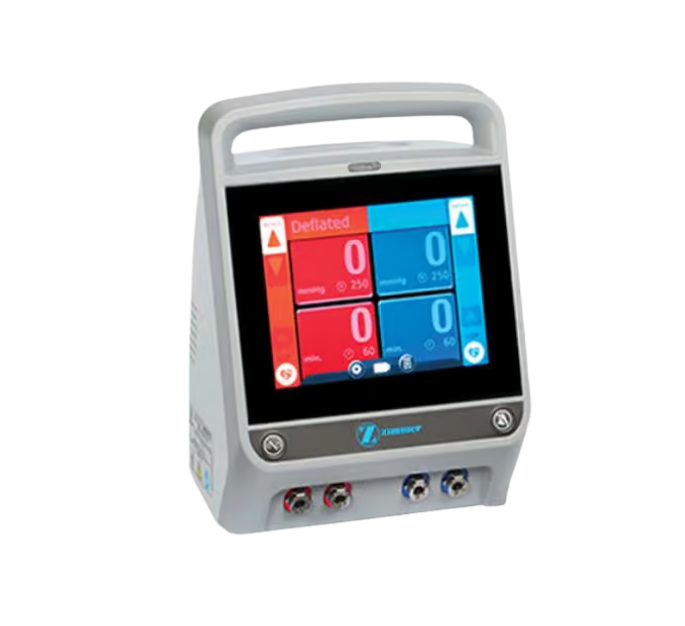

Zimmer A.T.S 4000 Tourniquet System
Zimmer A.T.S 4000 Tourniquet System
Zimmer prioritizes patient comfort and safety by offering lower tourniquet pressure options, aimed at minimizing the risk of nerve-related injuries and reducing post-operative pain. With the ATS 4000, surgeons and healthcare professionals can perform procedures with confidence, knowing that patient wellbeing is at the forefront of the design.
Experience the reliability, precision, and safety of the Zimmer ATS 4000 Tourniquet System, where innovation meets excellence in surgical technology.
Questions About This Product?
Our representatives are waiting to answer any questions you may have.
Features:
With the capability to deliver a variety of pressures at specific times and for specific limbs, the Zimmer ATS 4000 ensures optimal blood occlusion while minimizing the risk of complications. Its dual cuff feature not only enhances efficiency but also offers an added layer of safety by preventing accidental cuff release. Moreover, the automatic IVRA Cuff Lock feature ensures that cuff deflation on the second cuff is intentional, further enhancing patient safety during procedures.
- Personalized Pressure Technology
- Touchscreen User Interface
- 8.4″” Color Display
- Self-check Calibration: automatically checks the accuracy of the machine calibration each time the unit is powered on. This saves setup time.
- Cuff Alert: alerts user of cuff status when attempt is made to set the machine to stand-by.
- Cuff Lockout: feature prompts the user to confirm the deflation command during bilateral or IVRA procedures in order to reduce complications due to sudden cuff deflation.
- Six-hour Lithium Ion Battery Backup: maintains pressure if AC power is temporarily lost.
- Color-Coded Cuffs: from 8 inches to 42 inches accommodate virtually all patients and limbs.
- Carrying Handle: makes the system easy to transport, and includes pull-out hangers for storage of cuffs and hoses. The lightweight, portable unit can be mounted on an IV pole or placed on a table.
- Innovative Limb Occlusion Pressure (LOP) feature
- Uses ambient air
- Uses electronic and microprocessor regulated pressure
- Dual Port, Dual Cuff system: for simultaneous use of two dual port cuffs each with offering independent pressure and time regulation
- Facilitates dual port, dual bladder cuff usage for IVRA/Bier Block procedures
- Uses dedicated ports for supplying and measuring pressure which allows for fast and precise pressure regulations
- Visual and audible alarms activated when an unsafe condition is detected
Specifications
Dimensions
- Height:13.1 in (33.3 cm)
- Width: 9.3 in (23.6 cm)
- Depth: 10.5 in (26.7 cm)
- weight: 13.2 lbs (6kg)
Timer
- Time Alarm Set Range: 1 – 240 minute; 1 minute increments
- Timer Accuracy: 0.25% of elapsed time
Power
- Line Voltage Range: 100 – 240 VAC, 50/60 Hz, Auto Switching
- Line Current: 1000 mA RMS @ 120 VAC
- Input Power: 53 Watts Typical
- Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
- Power Plug: Hospital grade, 3 prong straight blade, 15 Amp
Pressure
- Cuff Pressure Range: 50 – 400 mmHg, 1 mmHg increments
- Extended Cuff Pressure Range: 401 – 600 mmHg, 1 mmHg increments. A yellow tile will appear requesting confirmation to exceed 400 mmHg pressure
- Pressure Accuracy: ?3 mmHg (50 – 600 mmHg)
- Pressure Regulation: ?4 mmHg of set point (10 second average under non-transient conditions without external leaks)
- Maximum Pressures: 400 mmHg per cuff | 600 mmHg per cuff in extended range
Battery
- Battery Type: Rechargeable, 14.4 VDC, Li-Ion, 4.3 Amp hours
- Battery Discharge Time: Unit will operate on battery power for 360 minutes minimum with fully charge batteries
- Battery Recharge Time: 10 hours (Maximum). Unit should be plugged in 10 hours before initial use.
Specifications:
| Specification | Value |
|---|---|
| Height | 13.1 in (33.3 cm) |
| Width | 9.3 in (23.6 cm) |
| Depth | 10.5 in (26.7 cm) |
| weight | 13.2 lbs (6kg) |
