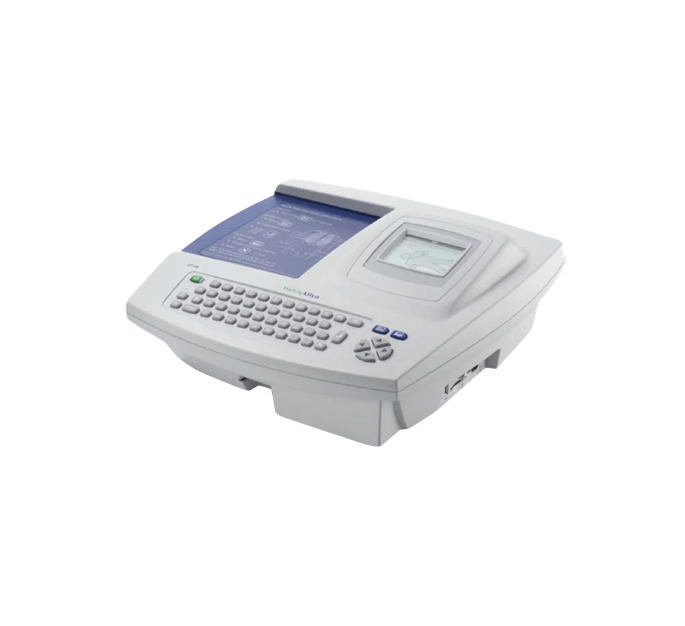

Experience reliable ECG monitoring with the Welch Allyn CP100 Resting ECG Monitor. Whether used for routine cardiac assessments or diagnostic testing, this innovative monitor provides essential capabilities to support healthcare professionals in delivering high-quality care to patients with cardiac conditions. Trust in the Welch Allyn CP100 Resting ECG Monitor for accurate and efficient ECG monitoring in any clinical setting.

The Welch Allyn CP100 Resting ECG Monitor is a trusted solution for healthcare professionals seeking reliable and accurate electrocardiogram (ECG) monitoring in clinical settings. Engineered by Welch Allyn, a leader in medical technology, this monitor offers essential features to support efficient and accurate cardiac assessments. Let’s explore the key features and benefits of the Welch Allyn CP100 Resting ECG Monitor:

Features:

• High-Quality ECG Recording: Delivers high-quality ECG waveforms with exceptional clarity and detail, enabling accurate interpretation by clinicians.
• User-Friendly Interface: Features an intuitive interface with easy-to-navigate controls and a clear display screen, allowing for quick and efficient operation.
• Multiple Recording Modes: Offers multiple recording modes, including standard 12-lead ECG, rhythm strip, and customizable protocols, providing flexibility to meet various clinical needs.
• Integrated Interpretation: Includes built-in ECG interpretation software that provides automated analysis of ECG waveforms, helping clinicians identify common cardiac abnormalities and arrhythmias.
• Data Management: Supports seamless integration with electronic medical records (EMR) systems, allowing for efficient data management and documentation.
• Optional Accessories: Compatible with optional accessories such as barcode scanners and connectivity solutions, enhancing workflow efficiency and connectivity.
• Compact and Portable Design: Designed for portability, the Welch Allyn CP100 Resting ECG Monitor is compact and lightweight, making it ideal for use in various clinical settings, including hospitals, clinics, and physician offices.

Benefits:

• Accurate Diagnosis: The Welch Allyn CP100 Resting ECG Monitor provides accurate and reliable ECG recordings, enabling clinicians to make confident diagnostic decisions and develop appropriate treatment plans for patients.
• Efficient Workflow: With its user-friendly interface and seamless data management capabilities, the CP100 Resting ECG Monitor streamlines workflow processes, reducing the time and effort required for ECG testing and interpretation.
• Enhanced Patient Care: By delivering high-quality ECG recordings and integrated interpretation, the CP100 Resting ECG Monitor supports healthcare professionals in delivering optimal care to patients with cardiac conditions, ensuring timely intervention and management.
• Cost-Effective Solution: Designed to offer essential ECG monitoring capabilities at an affordable price point, the Welch Allyn CP100 Resting ECG Monitor provides excellent value for healthcare facilities of all sizes.
• Reliable Performance: Built by Welch Allyn, a trusted name in medical technology, the CP100 Resting ECG Monitor delivers consistent performance and accuracy, ensuring confidence in cardiac assessments.

Specifications

• Weight 11.6 lb (5.3 kg)
• Keyboard type Elastomer keypad with complete alphanumeric keys Soft-key menu and dedicated function keys (CP 200 Only)
• Paper type 8.25 x 11 inches (21 x 28 cm), Z-fold thermal paper, 200 sheets
• Thermal printer (internal) Computer-controlled dot array, 8 dots/mm
• Thermal paper speeds 10, 25, 50 mm/s
• Gain settings:
  • Auto ECGs 5, 10, 20 mm/mV, AUTO
  • Rhythm ECGs 5, 10, 20 mm/mV
  • Report print formats:
  • Auto ECGs 3×4, 3×4+ 1R, 3×4 +3R, 6×2, 12×1, 6×2 50 mm/s, 6×2 Ext.
  • Rhythm ECGs 3, 6, or 12 leads at a time (CP 200) 3 leads at a time (CP 100)
  • Average cycles 3×4 50 mm/s + 3R, 6×2 50 mm/s + 6R
  • ECG storage Up to 50 ECGs (CP 200 Only)
  • Frequency range 0.3 to 150 Hz
  • Digital sampling rate > 1,000 samples/second/channel
  • Pacemaker detection ANSI/AAMI EC11
  • Power requirement Universal AC power supply 100/240 V ~, 50/60 Hz ~, 2.2 A maximum
  • Fuses
  • AC
  • DC (battery fuse)
  • Time-delay type, 2 amp 250 V rating, Littlefuse 0215002 or equivalent.
• Lead configurations Standard, Cabrera
• Rechargeable battery Lead acid gel, 6 volt, 5 AH
• Prints up to 100 continuous ECGs per charge
• 12-hour recharging
• Filters 0.5 Hz high-performance baseline filter
• 35 Hz muscle-tremor filter
• AC-interference filter 50 Hz or 60 Hz
• Standard connectivity Com port, SD memory card slot (for use with cards ³ 64 MB)
• Connectivity with electronic medical records
• Supported through the Welch Allyn CardioPerfect workstation software
• Electrodes Rigorously tested for conductivity, adhesion, and hypoallergenic qualities, and exceed all AAMI standards
• Cables and wires meet or exceed IEC 60601
• Environmental operating conditions:
• Temperature +10 C to +40 C (+50 F to +104 F)
• Relative humidity 15 – 95% noncondensing
