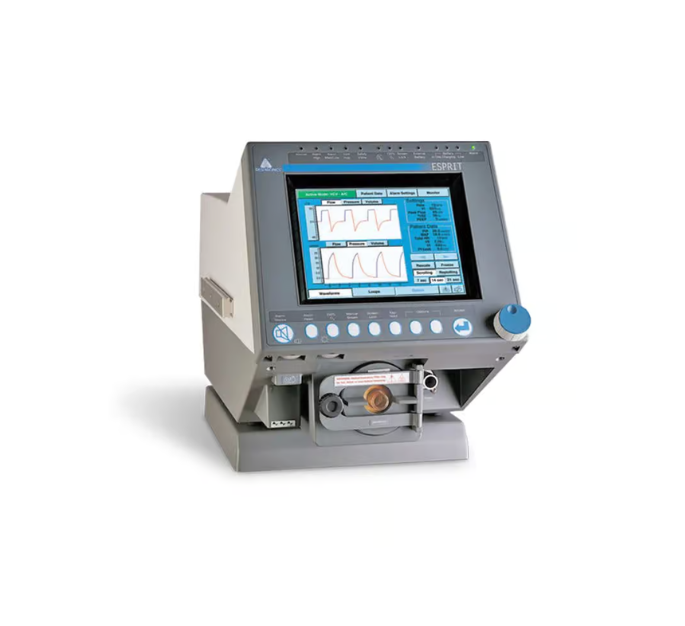

Philips Respironics Esprit Respiratory Ventilator

Philips Respironics Esprit Respiratory Ventilator

The Philips Respironics Esprit Respiratory Ventilator is a critical piece of medical equipment for facilities that require robust, adaptable, and precise ventilatory support. Its advanced features and user-friendly design make it an essential tool for enhancing patient outcomes in respiratory therapy.

Questions About This Product?

Our representatives are waiting to answer any questions you may have.

Spec Sheet (PDF)
Service Manual (PDF)
Validation Report (PDF)
Warranty Terms (PDF)
Request a Quote

Features:

Philips Respironics Esprit Respiratory Ventilator: Advanced Ventilation for Critical Care

The Philips Respironics Esprit Respiratory Ventilator is designed to meet the diverse needs of critical care patients, from infants to adults. Offering advanced ventilation modes and precise monitoring capabilities, the Esprit is suited for intensive care units, emergency rooms, and long-term care facilities, providing flexible and reliable support for a wide range of respiratory conditions.

Key Features:

  • Versatile Ventilation Modes: Includes advanced modes such as Volume Control, Pressure Control, SIMV, and CPAP, accommodating the specific respiratory requirements of each patient, from the critically ill to those needing milder support.
  • Comprehensive Monitoring: Features integrated monitoring that tracks and displays critical respiratory parameters such as tidal volume, respiratory rate, and gas exchange, allowing for tailored treatment strategies and optimal ventilation support.

Enhanced Patient Safety and Comfort:

  • Sensitive Triggering Mechanism: Incorporates highly responsive triggering technology that adapts to the patient’s spontaneous breathing efforts, minimizing the work of breathing and enhancing patient comfort during mechanical ventilation.
  • Pressure and Volume Control: Enables precise control over airway pressures and volume delivery, helping to prevent ventilator-induced lung injury and ensuring safer, more effective patient care.

Operational Efficiency:

  • User-Friendly Interface: Boasts a touchscreen interface with intuitive navigation, simplifying the setup and adjustment of ventilation parameters, thereby allowing healthcare providers to focus more on patient care.
  • Reliable Performance: Engineered for durability and reliability, the Esprit ventilator is designed to perform continuously in demanding healthcare environments, ensuring minimal downtime and consistent operation.

Maintenance and Hygiene:

  • Easy Maintenance: Designed with accessible components for straightforward maintenance, ensuring the ventilator remains functional and efficient over long periods.
  • Hygienic Design: The ventilator’s surfaces are easy to clean and disinfect, aiding in the maintenance of strict infection control standards in clinical settings.

Clinical Applications:

  • Broad Usability: Appropriate for a wide range of clinical settings, including intensive care, emergency medicine, and long-term ventilation facilities, reflecting its versatility and adaptability in handling complex respiratory conditions.

Dimensions (Ventilator)

  • Height: 16” (40 cm)
  • Width: 14” (36 cm)
  • Depth: 24” (61 cm)
  • Weight: 66 lb (30 kg)

Breath Types

  • Volume Controlled Ventilation: VCV
  • Pressure Controlled Ventilation: PCV
  • Non-Invasive Positive Pressure Ventilation: NPPV
  • Apnea Ventilation

Modes

  • Assist/Control (A/C): VCV, PCV
  • SIMV: VCV, PCV
  • CPAP: VCV, PCV
  • Spont/T: NPPV
  • Spont: NPPV

Volume Control

  • Respiratory Rate: 1 to 80 bpm
  • Tidal Volume: 50 to 2500 ml
  • Peak Inhalation Flow: 3 to 140 lpm (compliance compensated, actual to 200 lpm)
  • PEEP: 0 to 35 cmH2O
  • PSV Pressure: 0 to 35 cmH2O
  • Inhalation Trigger: Pressure Sensitivity: -20 to -0.1 cmH2O (hPA) (Resolution is 0.1 cmH2O (hPa); Flow Sensitivity: 0.5 to 20 lpm (Resolution is 0.1 lpm)
  • Exhalation Trigger: 10 to 45% of inspiratory peak flow
  • Rise Time: 0.1 to 0.9 seconds (Resolution is 0.1 second)
  • %O2: 21% to 100%
  • Insp. Hold: 0 to 2.0 seconds (Resolution is 0.1 second)
  • Flow Waveform: Descending ramp, square
  • Patient Type: Adult/Pediatric
  • Apnea Rate: 1-80 bpm

Pressure Controls

  • Respiratory Rate: 1 to 80 bpm
  • PCV Pressure: 5 to 100 cmH2O (hPa) Relative to PEEP)
  • Inhalation Time: 0.1 to 9.9 seconds (Resolution is 1 second)
  • PEEP: 0 to 35 cmH2O
  • PSV Pressure: 0 to 100 cmH2O (Relative to PEEP) is 0.1 cmH2O (hPa); Flow Sensitivity: 0.5 to 20 lpm (Resolution is 0.1 lpm)
  • Exhalation Trigger: 10 to 45% of inspiratory peak flow
  • Rise Time: 0.1 to 0.9 seconds (Resolution is 0.1 second)
  • %O2: 21% to 100%
  • Patient Type: Adult/Pediatric
  • Apnea Rate: 1-80 bpm

Non-Invasive Controls

  • Respiratory Rate: 1 to 80 bpm
  • EPAP: 2 to 25 cmH2O (hPa)
  • IPAP: 2 to 25 cmH2O (hPa)
  • Inhalation Time: 0.1 to 9.9 seconds (Resolution is 0.1 second)
  • Rise Time: 0.1 to 9.9 seconds (Resolution is 0.1 second)
  • Inhalation Trigger: Flow Sensitivity: 0.5 to 20 lpm from the base flow of 3 lpm above sensitivity (Resolution is 0.1 lpm)
  • Exhalation Trigger: 10 to 45% of inspiratory peak flow
  • %O2: 21% to 100%
  • Patient Type: Adult/Pediatric
  • Apnea Rate: 1-80 bpm

Interface Ports

  • Parallel Printer Port – Future
  • RS-232 output and input
  • Analog Output 0 to 5 VDC full-scale – future
  • Remote Alarm Nurse Call and Remove Alarm Annunciation

Specifications:

Specification Value
Height 16” (40 cm)
Width 14” (36 cm)
Depth 24” (61 cm)
Weight 66 lb (30 kg)
